Ductwork in a Townhouse Party Wall: What Code Says

A townhouse owner in Gloucester Township or Voorhees asking whether a duct or dryer vent can borrow the wall shared with the next unit gets a short answer from the code: that wall stays closed.

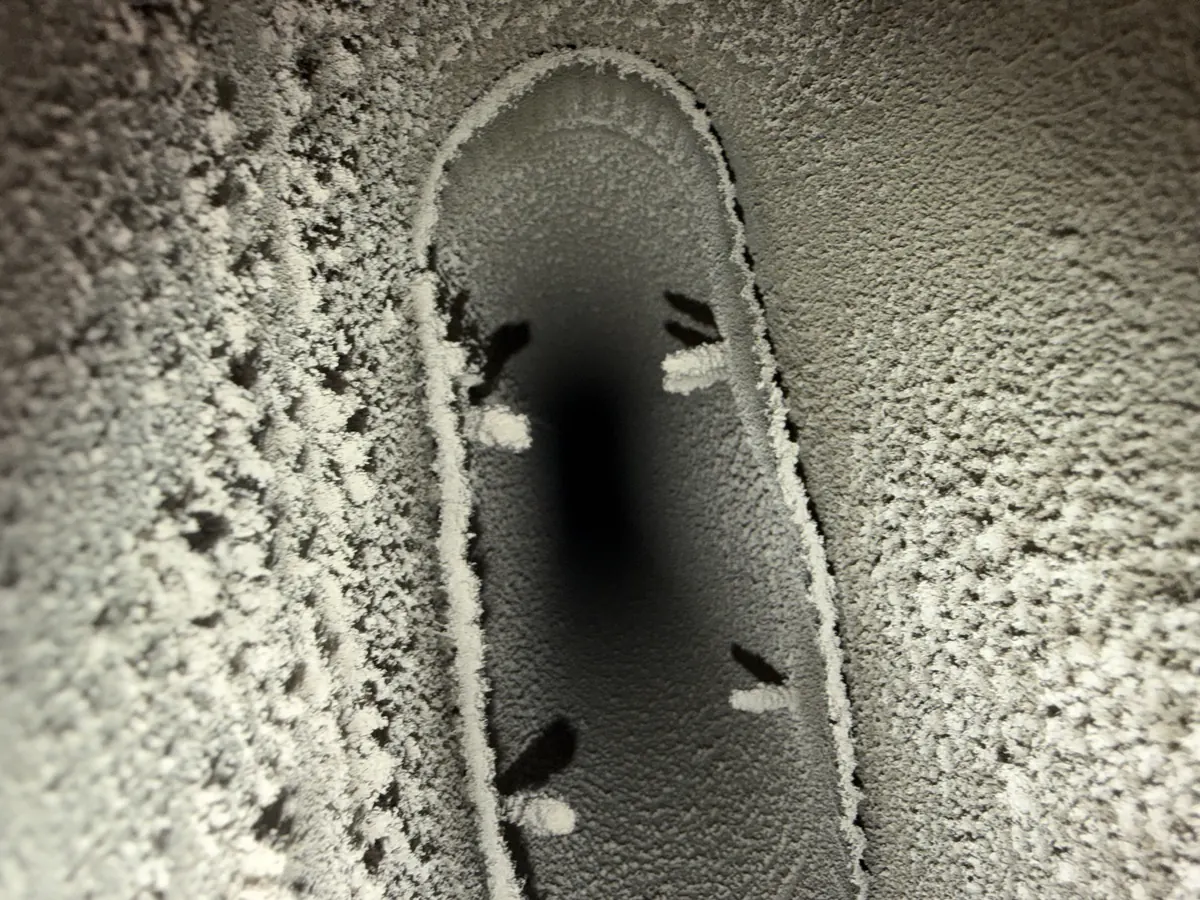

Lint furring the inside of a slim oval dryer duct

No. New Jersey's residential building subcode keeps plumbing, mechanical equipment, ducts and dryer vents out of the cavity of the common wall shared between two townhouse units. That wall is the fire separation between one home and the next, built to stay solid and continuous from the foundation up to the underside of the roof sheathing, and a duct or vent routed through its cavity would open a gap in that separation at exactly the point where it has to hold. A good share of the homes in Gloucester Township and in Voorhees are townhouses or other attached units, so this question comes up on plenty of renovation and new-installation jobs in both towns, not just once in a while.

What the common wall is built to do

A party wall between townhouse units is rated to resist fire for a set stretch of time, long enough for the units on either side to be treated as separate buildings for life-safety purposes even though they share a structure. That rating depends on the wall staying unbroken, the same layers of framing, fire-rated board and any fill running floor to roof without a gap cut through it for a duct, a vent, a pipe or a run of cable. Every penetration through that assembly has to be sealed and fire-stopped to keep the rating intact, and a duct or vent chase is a penetration the code does not want in that wall at all, sealed or not, because the opening itself works against what the wall is there to do.

Jobs that tempt a crew toward that wall

A few projects run into this more than others. Adding a bath or a laundry room on an interior wall sometimes leaves a plumbing or dryer vent route that looks shorter if it borrows the party wall rather than turning a corner into the unit's own framing. A new return for an upstairs hall can look like it wants the same shortcut, especially in a townhouse where the stud bay along the shared wall is the only open run nearby. Dryer Vent Installation is where this shows up most, since a straight shot through the party wall toward the back of the next unit can look like the fastest path to the exterior. The code does not treat any of these as exceptions. The wall stays closed whether the run is supply duct, return duct, a dryer vent or a drain line.

Where a townhouse unit can still route a duct or a vent

Every attached unit keeps a full set of routes that belong to it alone. The front and rear exterior walls are available for chases and vent terminations, since those walls face the street or the yard rather than the neighbor. Floor joist bays running from front to back or side to side within the unit's own footprint carry duct and vent runs the way they would in a detached house, as long as the bay does not cross into the shared wall assembly. Soffits built along an interior wall that is not the party wall give a boxed-in path for a return or a supply run without touching structure that is rated for separation. The unit's own share of the attic, where the roof framing sits entirely within that unit's footprint, is usually the most direct path for a dryer vent or exhaust duct headed up and out through the roof rather than across the shared wall toward a neighbor's exterior. Air Duct Installation planned around these routes from the start avoids a rework later, and in most of these townhouse layouts there is more usable chase space along the front, rear and interior partitions than the party wall would have offered.

What to do if a run already lives inside the party wall

Older work sometimes turns up a duct or a dryer vent already routed through the common wall, usually from a renovation done before anyone checked the assembly it was passing through. An opening up of a wall for Air Duct Repair or a dryer vent replacement is the point where that gets caught, since it is the first time anyone looks inside that cavity in years. The fix is a reroute into the unit's own framing rather than a patch that leaves the duct where it is, because sealing around a penetration in that wall does not restore the fire separation the way removing the penetration does. A technician who finds this mid-job will flag it before closing the wall back up, since covering it over without correcting the route just hides the problem for the next person who opens that wall.

Permits and the association before anything changes outside

A new duct run, a relocated dryer vent termination or any change to an exterior wall or roof penetration goes through the township's permit process before work starts, and Gloucester Township and Voorhees both review that kind of work the way any other municipality in Camden or Burlington County does. In a townhouse with a homeowners association, the exterior face of the building, including where a dryer vent cap or an exhaust termination sits on the siding or the roof, is often covered by the association's own rules on top of the township permit, so a written estimate for this kind of job should spell out which approvals the homeowner needs to gather before the crew shows up to cut an opening. None of that changes where the duct or vent is allowed to run. It just adds steps before the work on the unit's own exterior wall or roof can begin.

Sources

Questions and answers

Can a dryer vent run through the party wall if the run is shorter that way

No. The length of the run does not change the code position on the party wall cavity. A dryer vent has to route through the unit's own framing, its own exterior wall or its own roof, even when that path is longer than cutting straight across to the shared wall.

What if the party wall has fire-rated board on both sides already

The fire-rated board is part of what makes the wall a separation between units, and cutting a duct or vent opening through it removes that protection at the opening regardless of how the rest of the wall is built. A rated assembly with a hole in it is not treated the same as one left intact.

How would a homeowner find out if a duct is already inside the party wall

It usually turns up when a wall is opened for other work, a renovation, a repair call or a dryer vent replacement. A technician working on Air Duct Repair or Dryer Vent Installation checks what wall a run passes through as part of that job and will point it out before closing the wall back up.

Does this rule apply the same way to a return duct as a supply duct

Yes. The code restriction is about the wall assembly being penetrated, not about which direction the air moves through the duct. A return run headed for an upstairs hall is held to the same limit as a supply run feeding a bedroom.

Who handles the permit for a new duct or vent route through an exterior wall

The contractor doing the work typically pulls the township permit as part of the job, and in a townhouse with a homeowners association, the homeowner usually needs to clear the exterior change with the association separately before the permit work proceeds.
